PA/PE/PP/PVC High Speed Single Wall Corrugated Pipe Extrusion Line

Description:

Different extruder and forming machine will be chosen for different material: PA, PE, PP, UPVC, etc. The pipe is mainly used for electrical cable or wire protection, drainage pipe of washing machine, pipe in dust collector, automobile industry, lamp industry and air-exhausted pipe etc.

Standard single wall high speed corrugated pipe forming machine: can produce two diameters or three diameters’ single wall corrugated pipe in the same mould blocks, which reduce the cost of the moulds and reduce the time for changing the mould blocks, increase the efficiency.

CONTACT NOW

Product Detail

Product Tags

Product Information

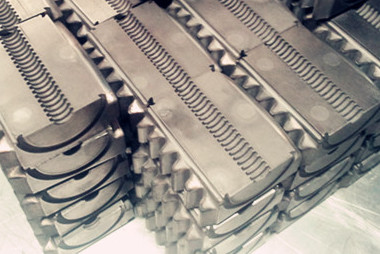

High speed corrugated pipe forming machine: forming blocks running without chain, blocks installed directly in the gear groove, rely on 9Mn2V material forming blocks with machining accuracy of 0.01 mm, realize high speed stable running.

Material: PA, temperature range: -40℃-115℃, the product does not contain halide, anti-oil, anti-acid. Anti-inflammation rate is HB (U94). The black color pipe is ultraviolet resistant.

Material: PP, temperature range: -20℃-110℃, the product is anti-oil, anti-acid, anti-alkali. The black color pipe is ultraviolet resistant.

Material: PE, temperature range: -40℃-80℃, the product is anti-oil, anti-acid, anti-alkali. The black color pipe is ultraviolet resistant.

PA PE PP PVC High speed single wall corrugated pipe extrusion line 2024090601

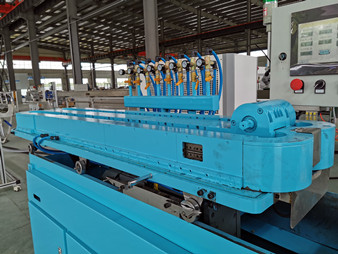

PA PE PP PVC High speed single wall corrugated pipe extrusion line 2024090602

PA PE PP PVC High speed single wall corrugated pipe extrusion line 2024090604

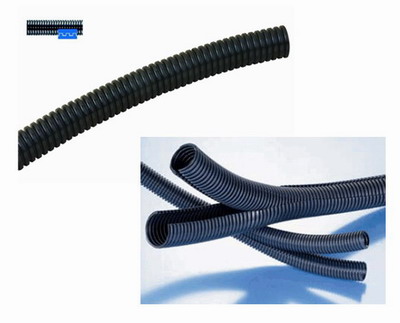

PAPEPPPVC High Speed Single Wall Corrugated Pipe Extrusion Line2024101501

Our advantage

Main Technical Parameter

Model	DBWG-45	DBWG-50	DBWG-65	DBWG-90
Screw diameter(mm)	45	50	65	90
L/D	30	30	30	30
Pipe diameter range(mm)	4.5～13	16～32	25～48	90～160
Mold block quantity (pairs)	52～70	52～70	52～60	72
Producing speed(m/min)	16～20	12～16	6～10	2～4
