With the rapid development of new energy vehicles, intelligent driving, and high-temperature, high-pressure systems, automotive tubing now demands higher standards for material performance, structural design, and manufacturing precision.

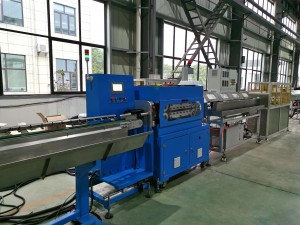

As a technology-driven enterprise with over 20 years of experience in plastic extrusion, BAOD EXTRUSION has launched a new-generation five-layer PA multi-layer tube extrusion line, providing the automotive industry with more reliable and intelligent system solutions.
Multi-Layer Structure – Fully Compatible
The five-layer PA multi-layer tube extrusion line supports typical structures such as PA / TIE / EVOH / TIE / PA, and can be flexibly configured with different material layers according to functional requirements. It is compatible with a wide range of engineering plastics, including PA12, PA6, PA66, EVOH, PPA, and PPS, covering both standard and high-performance materials.

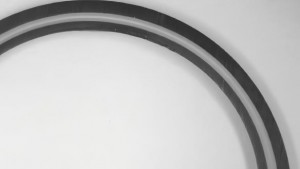

The co-extrusion die head adopts a multi-channel flow distribution design, ensuring precise layer thickness, excellent uniformity, and no delamination. The five-layer PA multi-layer tube extrusion line is suitable for various automotive applications such as fuel pipelines, cooling pipes, and more.
Technical Highlights
Professional Screw System Design
Optimized according to the melting characteristics of PA and barrier materials to improve plasticizing efficiency and material compatibility. The result is stable output and smooth material transition.
Precision Layer-Control Co-Extrusion Die Head

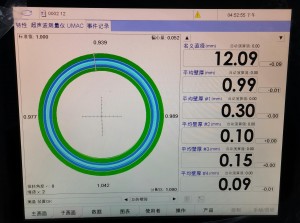

The die head uses multi-layer flow channels and spiral distribution structures, achieving ±0.02 mm layer thickness accuracy, fully meeting high-precision production requirements.
Intelligent Temperature & Centralized Control Platform

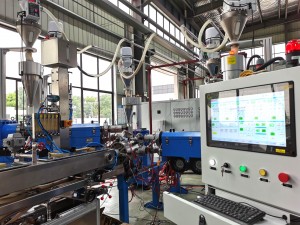

BAOD’s composite extrusion line is equipped with an advanced software control system featuring intuitive HMI. It provides real-time process data acquisition, monitoring, and recording, and supports remote dashboards and upper-computer connectivity for data analysis and automated report generation — meeting Industry 4.0 smart factory standards.
High-Efficiency Calibration and Cooling System
The fully automatic precision vacuum calibration and cooling system maintains ±0.1 KPa accuracy within a 0 to –50 KPa range, with online automatic centering. It supports various types of calibration tooling — dry, wet, copper sleeve, or laminated — to ensure precise sizing control for all categories of automotive plastic tubes.
Global Delivery · Local Support
By the end of 2024, BAOD EXTRUSION has delivered over 160 PA tube extrusion lines worldwide, including multiple five-layer PA multi-layer tube extrusion line. These systems are widely used by leading automotive tubing suppliers both in China and abroad.
We provide end-to-end solutions, from material formulation, die customization, and process optimization to after-sales commissioning, helping customers achieve higher automation, optimized performance, and better cost control.
Shaping the Future · Creating Win-Win Cooperation
Every tube connects performance with safety; every innovation extends trust and vision. BAOD EXTRUSION sincerely invites industry partners to join us in exploring the limitless possibilities of multi-layer tube manufacturing — building a solid foundation for the next trends in the automotive industry.
